PRODUCTS

PRODUCTS

Accessories

SMARTeLOCK offers various accessories to complement the hotel locks, door locks and safes.
Total security solution including main products and accessories will bring you to experience user convenience.

AP300
Wireless access point

Item Specification
Communication with Server TCP/IP (standard), WIFI (IEEE 802.11b/g/n standards Transceiver, Optional) 2.4Ghz Wireless(ONLINE LOCK COMM)
Material Polycarbornate
Security AES128
Indicator LED
Effective range About 50 meters in open area (without barrier)
Communication Frequency with locks 2.4GHz IEEE 802.15.4 Compliant RF Transceiver 40-50M (Between Lock and AP)
Dimension 101.60 x 101.60 x 27.50 (mm)
Input Power DC 12V Adapter, POE (IEEE802.3af)
Operation temperature 0°C ~ 50°C (Operating), -40°C~85°C(Storage)
Certification FCC, CE, KC

DE-620
RFID Reader

Item Specification
RF card protocol ISO 14443 A/B, Mifare, FeliCa, ISO-18092, ISO-15693
PC interface USB 2.0
Input power DC 5V, 200mA
Operation temperature 0℃~ 50℃

Energy Control Unit

Item Specification
Power AC 220V / 110V / DC 12V
Credential ISO 14443 A/B, Mifare, Mobile Key
Dimension 110.60 * 85.60 * 21 mm

ER200DB
Smart Door Lock

Item Specification
Power DC 4.5V
Credential RFID card, Mobile Key, Smartcode
Communication Protocol 1. RFID Card: ISO 14443 A/B, Mifare, DESFire
2. Mobile Access: BLE 4.0

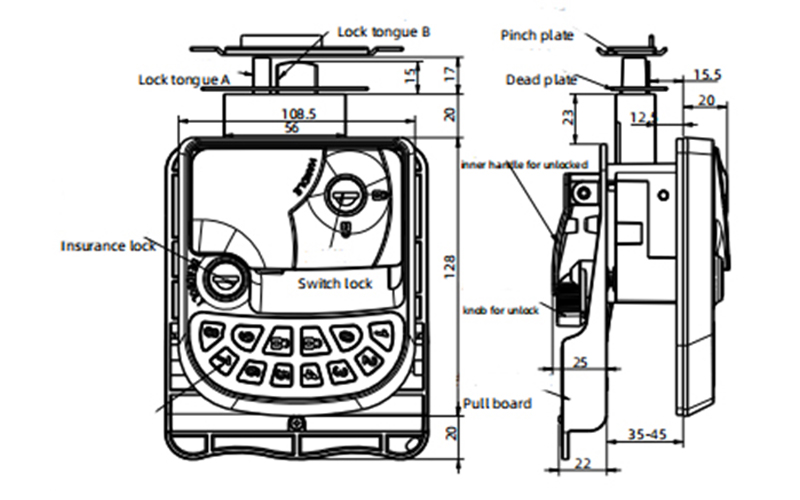

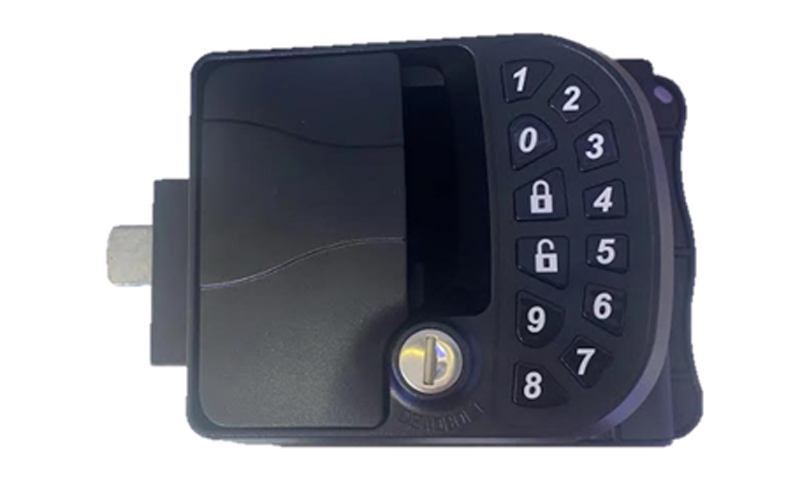

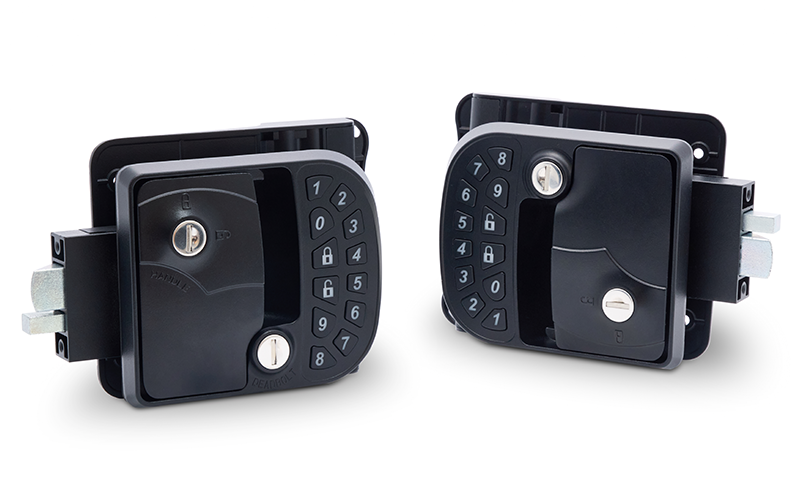

Caravan Lock
(CL100)

Item Specification
Access Type Non-Face-to-Face Solution
Mobile Key / PIN Code / Smartcode (Time-Sensitive Code)
Communication 1. IEEE 802.15.4 (ZIGBEE / Online)
2. BLE 4.0 or higher
Security 1. BLE: AES-128
2. ZIGBEE: AES-128 (Online)
3. Smartcode: SHA-256
Power 6V DC (4 X AA Alkaline batteries)
Audit Trail Online: Unlimited
Offline: Max 2,000 events (by Mobile App)
Emergency Opening Mechanical Override Key
Operation temperature -10℃~ 50℃
Certification KC

Locker Lock
(ZP100)

Item Specification
RF card protocol ISO 14443 A/B, Mifare, FeliCa, ISO-18092, ISO-15693
Input power 4 * AA Alkaline batteries
Operation temperature 0℃~ 50℃
