Products

Safes

e-Smart Safes enable you to experience the best security system with fast, easy and efficient access by RFID card, PIN and mobile device. It is ideal for use in hotels, resorts, offices, schools, private homes, accommodations and such. Keep your valuable personal belongings safely in e-Smart Safe and gain peace of mind and freedom.

01
04
05
06
01
04
05
06
previous arrow
next arrow

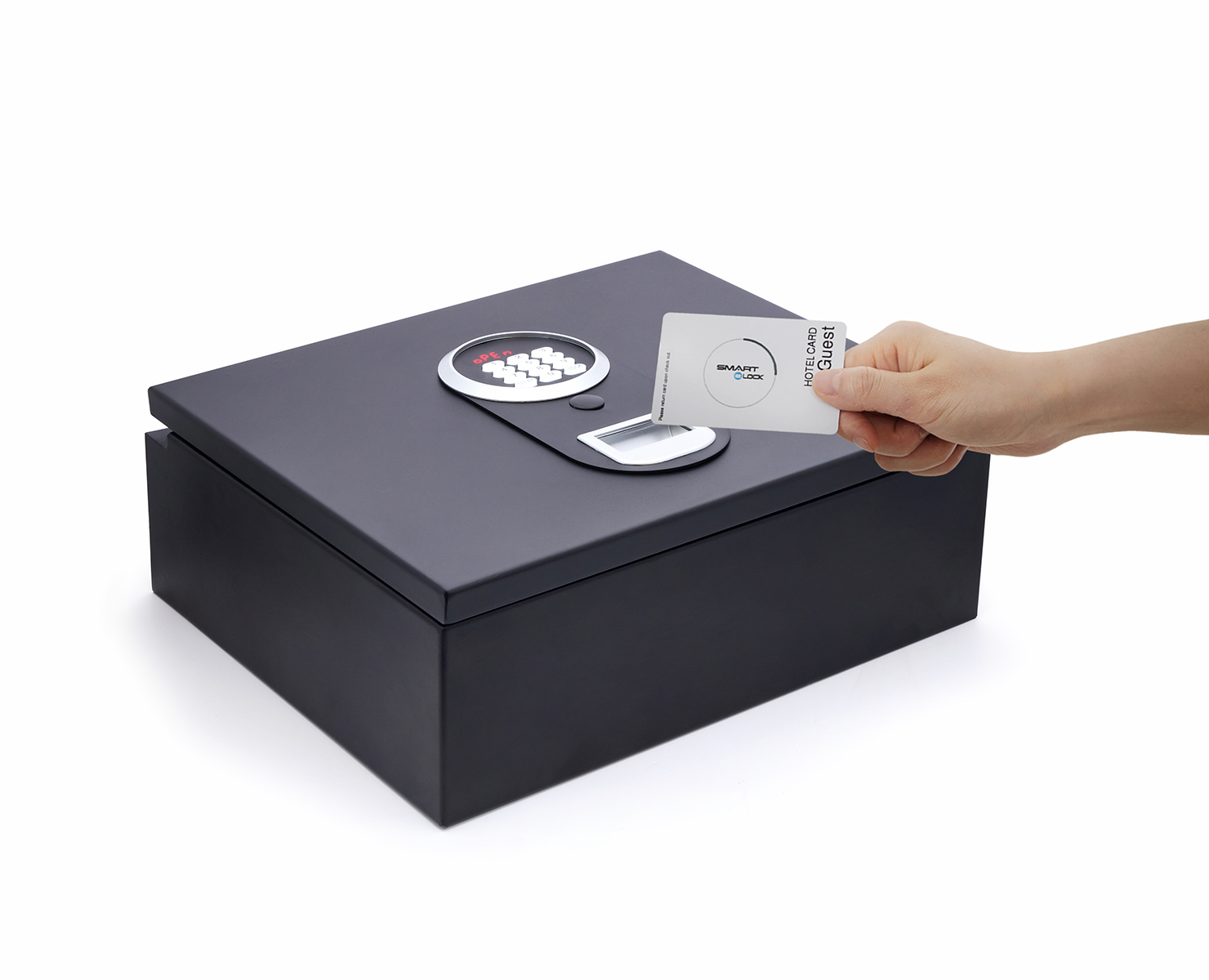

ES100 is top opening in-furniture drawer safe which has the most fashionable and space saving design which is suitable for drawers in offices, hotels, accommodations and such like. It operates by RFID card, PIN and mobile, and allows quick access for users to secure their valuables.

ES300 is designed to fit into closets, cabinets and small rooms. Not only RFID card and PIN, but also mobile can operate it. This durable safe is popular in hotels, resorts, and other accommodations needing a compact solution for closet shelves.

Features

Pin code

4-6 digits code can be programmed easily
Maximum 30 user code can be set by the software

User-Oriented Design

4-6 digits code can be programmed easily
Maximum 30 user code can be set by the software

RFID Technology

MIFARE Classic & DESFire at default 15014443 Type A/B, NFC and more on request

Audit trail

Default 75 events can be collected
Maintain a systemic detailed record of all date of access including date and time of use, card number, user name, lock/unlock history, etc.

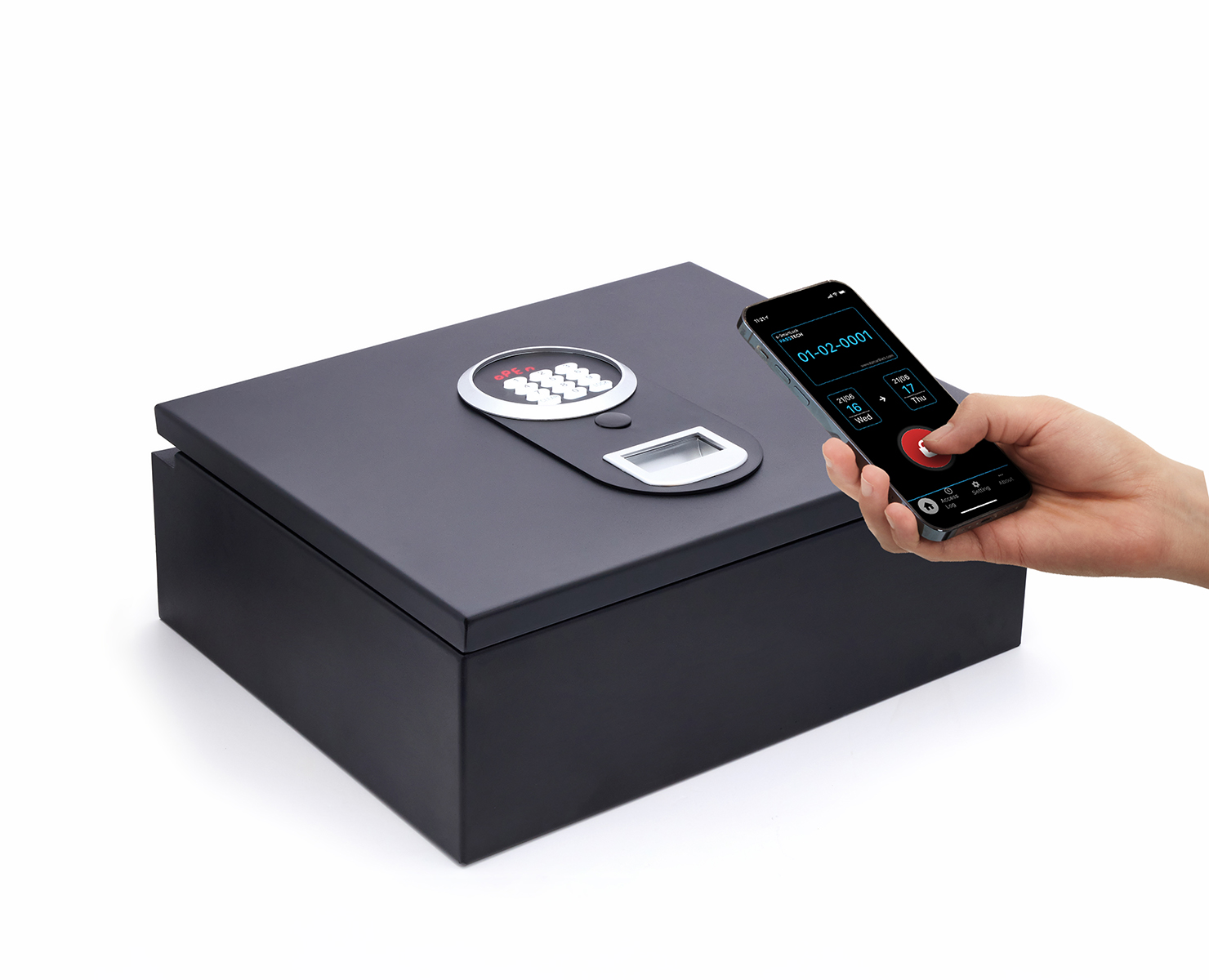

BLE Mobile Access Solution

Simply and quickly access to safes using mobile phone synchronized with user card via Passtech Mobile app
safes-icon6

Efficient Maintenance

Low battery warning
Anti-tamper switch
Mechanical key override for emergency opening
safes-icon7

Secure

Robust and compact design
Motorized opening
Mechanical override key for emergency opening

Operation Type

The most advanced electronic safe enables you to use multiple access credentials including PIN, RFID card, smartphone, and time-sensitive smart code (optional)

ES100

ES300

Specifications

ES100 ES300
External size 150(H) x 410(W) x 350(D) (mm) 200(H) x 400(W) x 300(D) (mm)
Weight 10KG 12KG
Opening Type Top opening Front opening
PIN code 3~8 digits 4 digits
RFID credentials MIFARE Classic & DESFire as default, ISO 14443 Type A/B, NFC and more on request
Mobile access (Optional) e-Smart Mobile ID, Mobile Sync, Mobile Key
Emergency opening Mechanical override key, Master code
Certification CE, FCC
Power Supply 4 x AA Alkaline batteries
LED display O O
Keypad backlight O X

Dimensions

ES100

ES300

How to install

ES100

READY

Step 01

Step 02

Step 03

Step 04

ES300

READY

Step 01

Step 02

Step 03

Step 04
