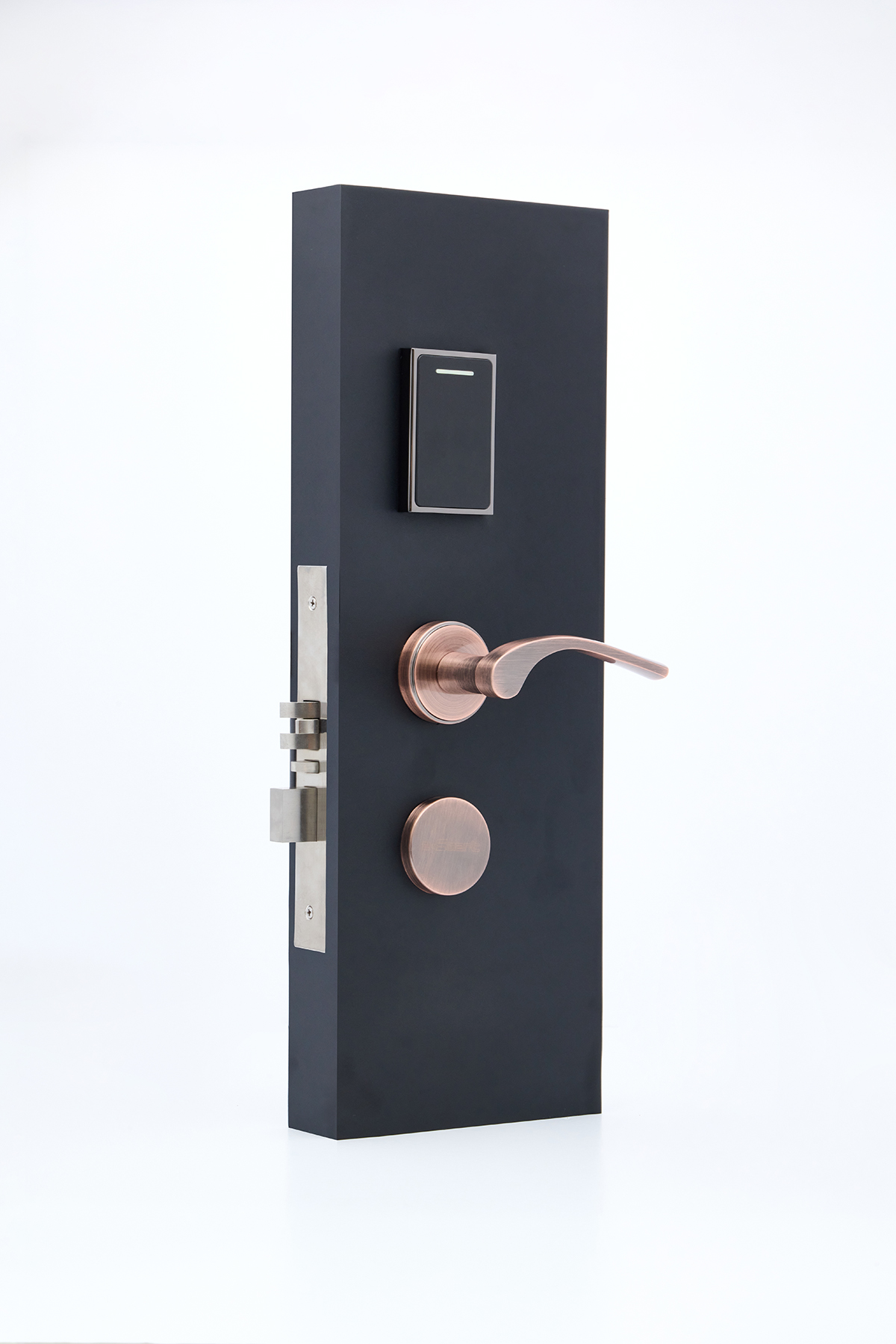

Platinum HP200

e-Smart Platinum HP200 wireless online hotel lock is designed stylish and more hospitality-friendly for high-end hotels/resorts with its chrome plated metal front and more intuitive LED indicator for better guest recognition.
It integrates all SMARTeLOCK’s technology including RFID card, Mobile access, Check-in/out time sensitive PIN code, wireless online monitoring/managing/controlling and more…

Previous slide
Next slide

Main Features

Support RFID technology
Mifare classic & Desfire, ISO14443 Type A/B, ISO156933
Mechanical override
Hidden cylinder key inside
Power Source
1) Battery life : 18months and more (AA x 4)
2) Wired Power (12V) – Optional
Support Panic release
Deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situations
Support mobile key (BLE 4.0 or higher)
BLE/ZIGBEE Unique security key by AES128 security algorithm
Audit trail up to 2,000 events by RFID card or Smartphone
Support Dead bolt
Mortise Standard
ANSI/EURO
Provide Intrusion alarm
Door Open/Close detection Sensor (Optional)
Provide Ajar alarm
Lock Management by mobile app (Master key/FW update/Audit Trail/Battery Status check/etc.)
Certifications
CE, FCC, KC approved
Support PIN code(Smart code)
Use 8~12 pin code which is provided with HashCode algorithm from the client software or cloud server

Specifications

Item Specification
Access type RFID card / Mobile key / PIN code (Smart code)
RFID protocol Mifare Classic & Desfire at default, ISO 14443 Type A/B, ISO 15693
Communication method · 802.15.4 (ZIGBEE / Online)
· BLE 4.0 or higher
· 13.56MHz RFID
Security · BLE : AES-128
· ZIGBEE : AES-128 (Online)
· Pin code(Smart code ) : SHA-256
Mortise & Dimension · Mortise : ANSI/EURO
· Front Reader(mm): 58 (W) * 87 (H)
· For more details, please refer to the datasheet
Indicator Buzzer, Red/Green LED
Power 6V DC (4 X AA Alkaline batteries)
Wired Power (12V) – Optional
Battery life 18 months (10 operations per day)
Housing Material · Exterior metal : Stainless steel
· Exterior case : Polycarbonate
· Interior case : Polycarbonate
Audit trail Online : Unlimited
Offline : Max 2000 events (by RFID card or Mobile app)
Operation Temp -10 °C to 50 °C
Certification FCC / CE / KC
Item Specification
Access type RFID card / Mobile key / PIN code (Smart code)
RFID protocol Mifare Classic & Desfire at default, ISO 14443 Type A/B, ISO 15693
Communication method · 802.15.4 (ZIGBEE / Online)
· BLE 4.0 or higher
· 13.56MHz RFID
Security · BLE : AES-128
· ZIGBEE : AES-128 (Online)
· Pin code(Smart code ) : SHA-256
Mortise & Dimension · Mortise : ANSI/EURO
· Front Reader(mm): 58 (W) * 87 (H)
· For more details, please refer to the datasheet
Indicator Buzzer, Red/Green LED
Power 6V DC (4 X AA Alkaline batteries)
Wired Power (12V) – Optional
Battery life 18 months (10 operations per day)
Housing Material · Exterior metal : Stainless steel
· Exterior case : Polycarbonate
· Interior case : Polycarbonate
Audit trail Online : Unlimited
Offline : Max 2000 events (by RFID card or Mobile app)
Operation Temp -10 °C to 50 °C
Certification FCC / CE / KC

Color Options

SILVER

BLACK

GOLD

Color Options

SILVER

BLACK

GOLD

Mortise Options

ANSI(Top)

ANSI(Bottom)

EURO #6

Mortise Options

Handle Options

L1 type

L2 type

7 size type

J type

Z type

P type

T type

Handle Options
